EC motor driven fans

High air volume and efficiency

An EC motor is an electronically controlled permanent magnet synchronous motor,
featuring high energy efficiency, intelligent control and comprehensive protection.
Fitted with our new-generation high-efficiency impellers,
Schniro EC fans achieve remarkable improvements in performance,
noise level and overall efficiency.

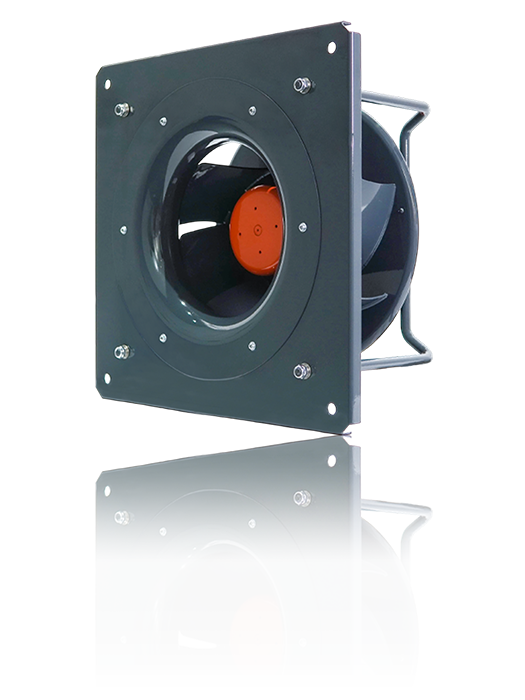

EC external rotor fan

List of Characteristics

01

Compact structure, equipped with efficient EC motor

02

Overload and locked rotor protection

03

PWM or voltage regulation can be implemented to adjust the fan speed

04

Customized solutions for customers

05

Temperature monitoring function

Scope of application

Wind power inverters, clean spaces, fresh air units, energy storage, etc

Product Search

EC motor driven fans

Model	Rated VoltageV	FrequencyHz	Sizemm	Speedrpm
EAHT200-E42TS-MD	1~220±10%	50/60	200	2800
EAHT250-E42VS-MD	1~220±10%	50/60	250	2800
ECBH175-E42VS-42D	1~220±10%	50/60	175	4000
ECBH190-E42VS-44D	1~220±10%	50/60	190	3500
ECBH225-E42VS-63D	1~220±10%	50/60	225	2500
ECBH250-E42BS-56D	1~220±10%	50/60	250	2550
ECFS140-E42VS-57D	1~220±10%	50/60	140	2880
ECFS160-E42BS-60D	1~220±10%	50/60	160	2830
ECBJ315-D64XS-91A	3~400V±10%	50/60	315	3100

For more information, pleasecontact us
