Compact dimensions, easy for installation and maintenance, wide application, low noise level and outstanding efficiency.
Size from 315 to 1000 mm, 100% speed controllable. Available in both air flow directions, different blade angles, optional quantity of leaf number.Wide range of accessories, including guard grilles, basket guard grilles and wall rings.
External rotor motor or standard motor can be applied in different frequency and voltage.

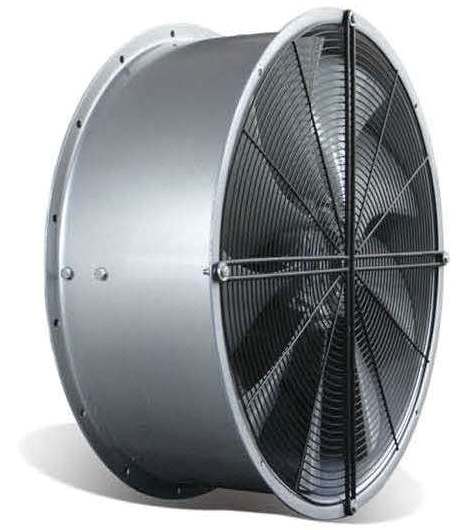

Outstanding feature of SHIRO external rotor fan with Cylinder are their low noise level and easy installation. Manufacture by SHIRO own advanced equipment, the strength of cylinder are perfectly ensured.
Total solution for customer, easy for installation, SHIRO is flexible in size design.
RASA92 Series
Sheet steel;ERM;
Impeller diameter:200—250mm;
Max air flow:1950CMH;
Max static pressure:150Pa.
RASB92 Series
Sheet steel;ERM;
Impeller diameter:200—250mm;
Max air flow:850CMH;
Max static pressure:35Pa.
AL138 Series
A-alloy;ERM;
Impeller diameter:400—630mm;
Max air flow:12000CMH;
Max static pressure:200Pa.
AL180 Series
A-alloy;ERM;
Impeller diameter:400—800mm;
Max air flow:2500CMH;
Max static pressure:250Pa.
AL_3 Series
A-alloy;ERM;
Impeller diameter:630—800mm;
Max air flow:24000CMH;
Max static pressure:300Pa.
AL_4 Series
A-alloy;ERM;
Impeller diameter:400—800mm;
Max air flow:2500CMH;
Max static pressure:250Pa.
AW Series
Multiple blade;
Impeller:315—1000mm;
Max air flow:50000CMH;
Max static pressure:700Pa.
RASA92 Series
• Sickle blade
RASB92 Series
• Skew blade
• Easy for installation and maintenance
• External rotor motor can be applied in different frequency and voltage, energy saving
• Cabinet ventilation system, purification system, refrigeration and air-conditioning
AL138 Series
AL180 Series
AL_3 Series
AL_4 Series
• Sickle blade
• High efficiency, low noise
• External rotor motor can be applied in different frequency and voltage, energy saving
• Ventilation and air conditioning system, building & agriculture ventilation, heating
AW Series
• Paddle blade, Sickle blade
• Driven by motor
• Adjustment of blade angle
• No. of blade changeable: 3, 4，5，6，7，8，9，10，12，14
• Air volume and air pressure adjustment scope is wide. Normally applied for ventilation and fire fighting system.

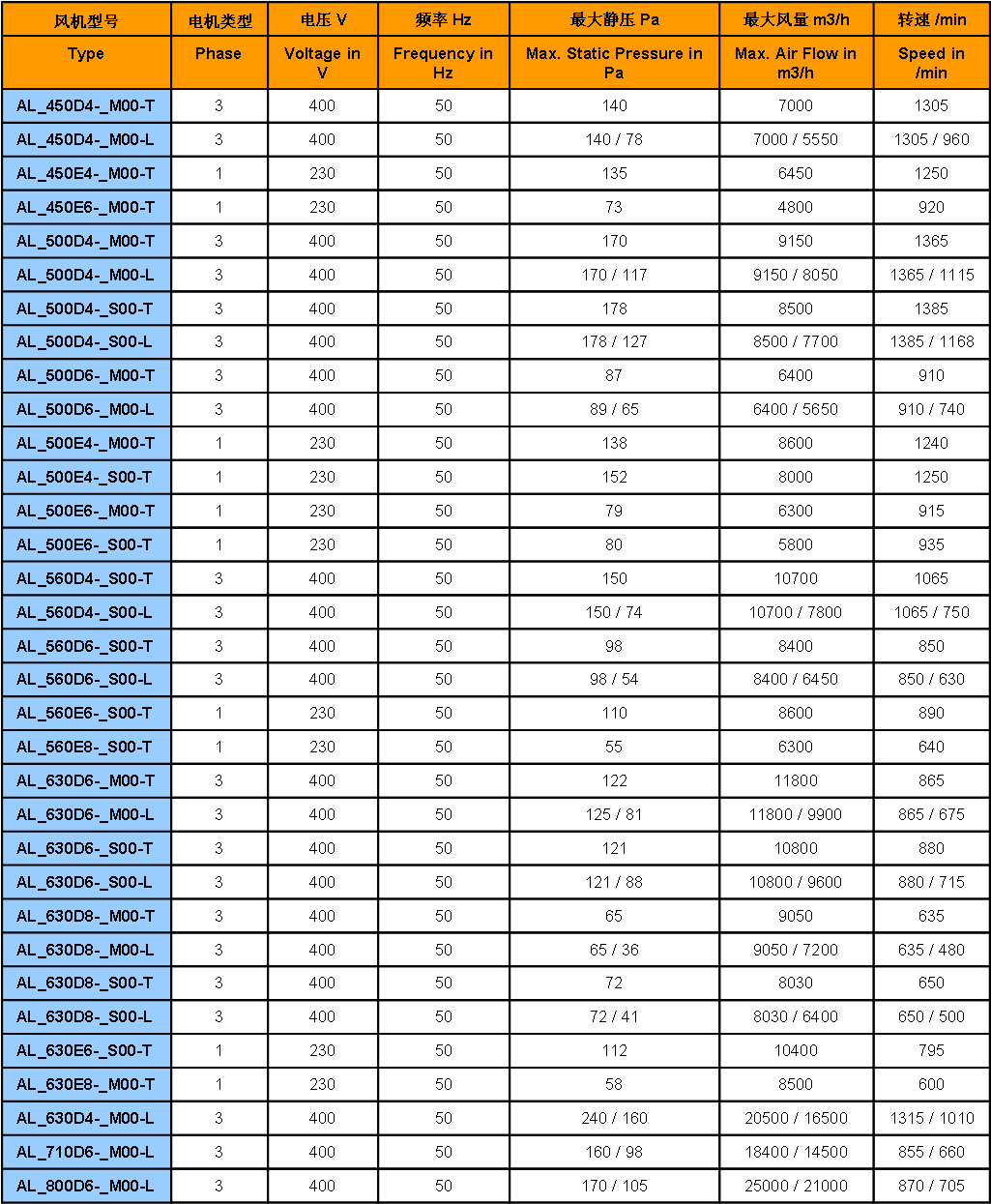

The performance data means some performance parameter in the rated working state.
We reserve the rights to make technical changes or modify the contents of this document without prior notice. SHIRO does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.
For each SHIRO fan, we also provide you other optional parts that satisfy your diverse need.
Each SHIRO fan has the one and only product code, including the standard and non standard products.
