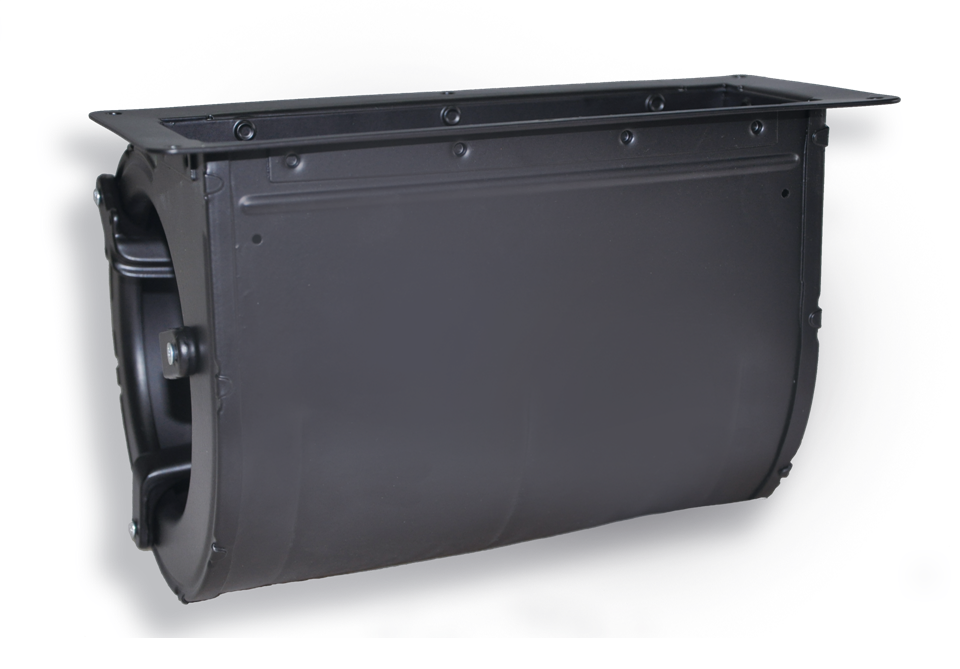

Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor. This product series are high efficiency, a low noise level with a high increase in static pressure.
Impeller diameter range:200-280 mm(7-12 inch). Motor can be applied in different frequency and voltage.
RDFA92 Series - Metric
Impeller diameter:120-160mm;
Max air flow:950CMH;
Max static pressure:700Pa.
RDFA Series - Metric
Impeller diameter:200-500mm;
Max air flow:8500CMH;
Max static pressure:900Pa.
RDFZ Series - Inch
Double inlet;ERM;
Impeller diameter:7-12in;
Max air flow:7000CMH;
Max static pressure:700Pa.
·Soft support, low quiver and noise
·Efficiency, voltage and speed driven through controllable external rotor motor, energy saving
·Air conditioning, clean room, cabinet ventilation system, purification system, commercial kitchen

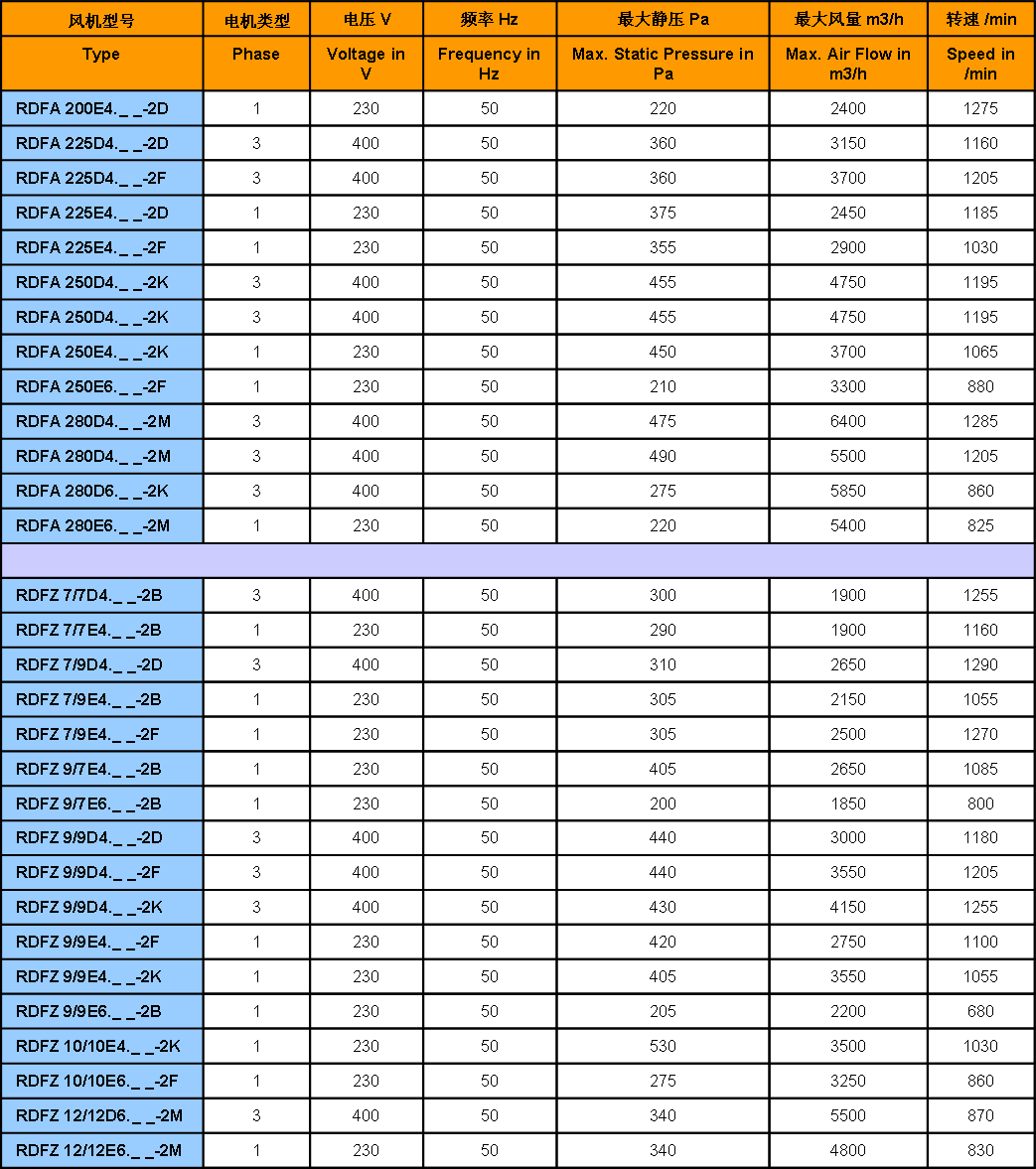

The performance data means some performance parameter in the rated working state.
We reserve the rights to make technical changes or modify the contents of this document without prior notice. SHIRO does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.
For each SHIRO fan, we also provide you other optional parts that satisfy your diverse need.
Each SHIRO fan has the one and only product code, including the standard and non standard products.
