Optimal motor cooling and a compact design achieved through the voltage controllable external rotor motor. Aluminum sheet metal impeller with outstanding efficiency.
Impeller diameters from 280 to 630 mm. Motor can be applied different frequency and voltage.
Total solution for customer,ready-to-install series, this design reduce the risk caused by customer in process of assembling.

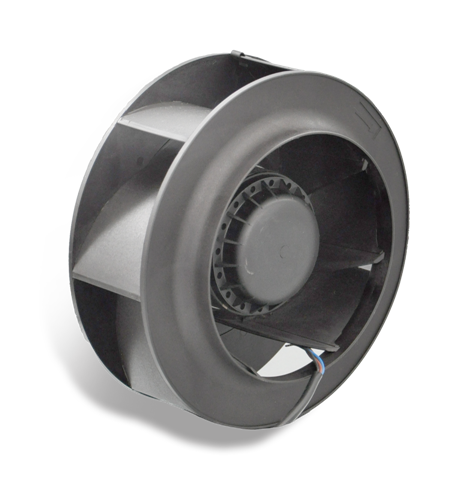

RHA92 Series
A-alloy;ERM;
Impeller diameter:175-315mm;
Max air flow:2400CMH;
Max static pressure:400Pa.

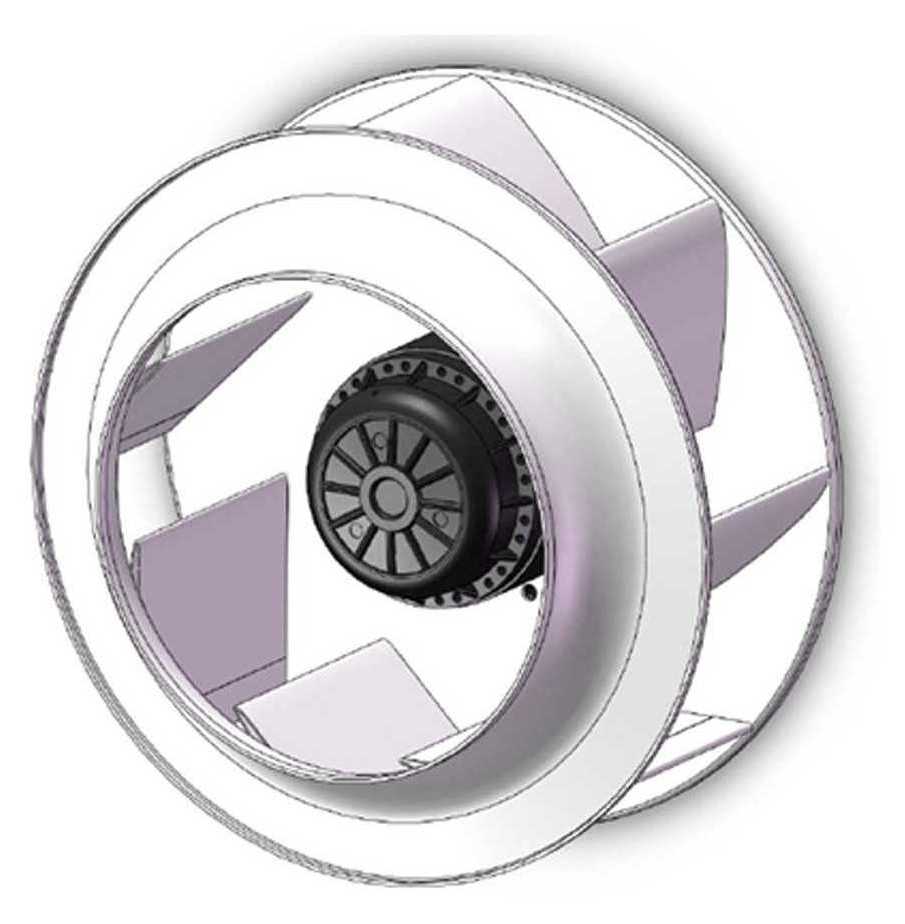

RHA Series
A-alloy;ERM;
Impeller diameter:280-630mm;
Max air flow:17000CMH;
Max static pressure:1150Pa.

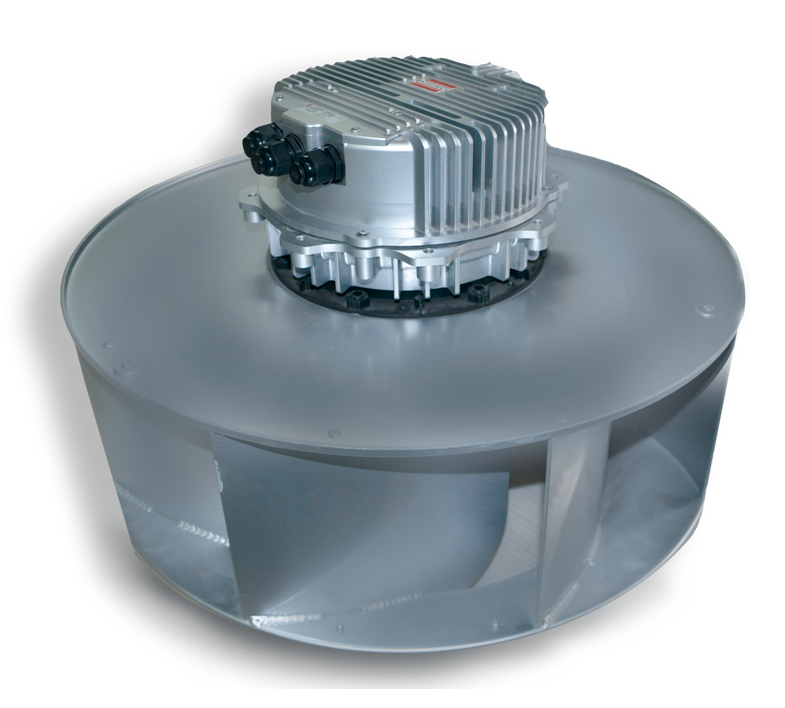

EHBA Series
EC motor;
Impeller diameter:450-630mm;
Max air flow:16500CMH;
Max static pressure:850Pa.
RHBB Series
Airfoil blade;
Impeller diameter:280-630mm;
Max air flow:25000CMH;
Max static pressure:1500Pa.

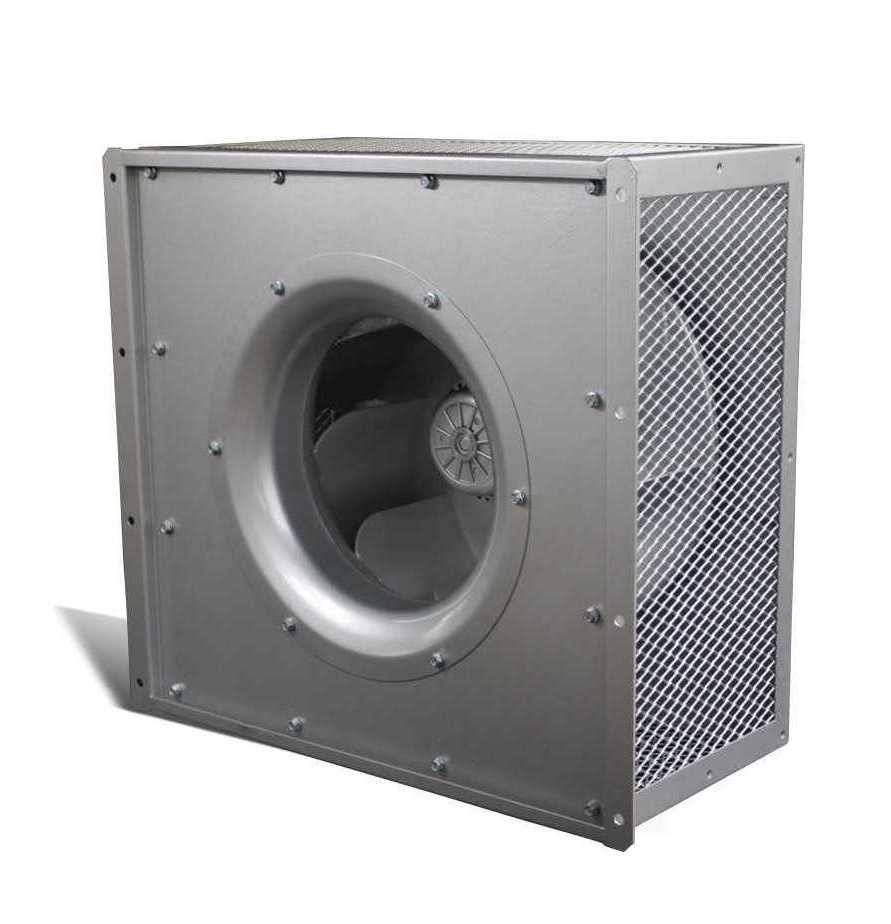

Total Solution - RMBA Series
A-alloy;ERM;
Impeller diameter:280-630mm;
Max air flow:17000CMH;
Max static pressure:1150Pa.

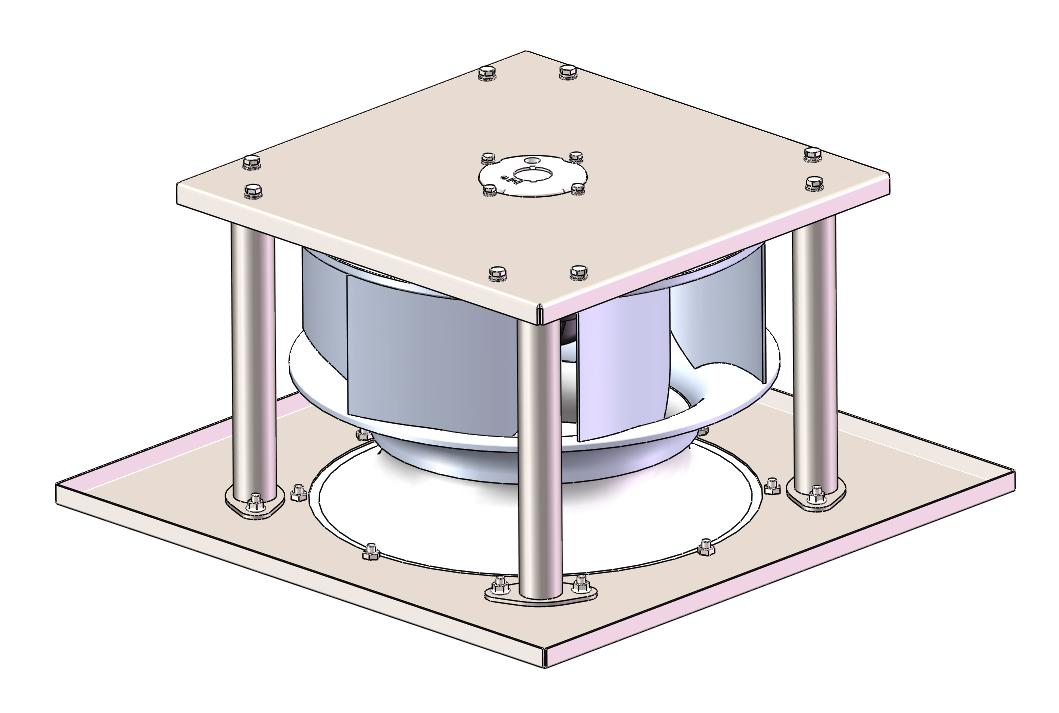

Total Solution - RMBB Series
A-alloy;ERM;
Impeller diameter:280-630mm;
Max air flow:17000CMH;
Max static pressure:1150Pa.
Total Solution - RMBC Series
A-alloy;ERM;
Impeller diameter:280-630mm;
Max air flow:17000CMH;
Max static pressure:1150Pa.
External rotor motor can be applied in different frequency and voltage, energy saving;
Easy for installation and maintenance.
RHA92 Series
·High efficiency, low noise
·Easy for installation and maintenance
·Cabinet ventilation system, purification system, refrigeration and air-conditioning
RHA Series
·High efficiency, low noise
·Air conditioning and ventilation system, static system, clean room, clean the dust chamber, FFU series, air conditioner for hospital, railway locomotive, metro and light rail vehicle air-conditioning
EHBA Series
·High efficiency EC motor
·Adjustable speed, RS485 RTU, self protection, soft start
·Cabinet ventilation system, purification system, HVAC for hospital, railway, metro, FFU, clean room
RHBB Series
·Efficiency higher than RHA series, low noise
·Air conditioning and ventilation system, wind cooling system
Total solution for customer, ready-to-install series, with a compact design, performance curves correspond to the respective RHA types.
Total Solution - RMBA Design
Total Solution - RMBB Design
·Ventilation system, ventilation for electric control cabinet
Total Solution - RMBC Design
·Ventilation and air conditioning system, used for ventilation of compressor

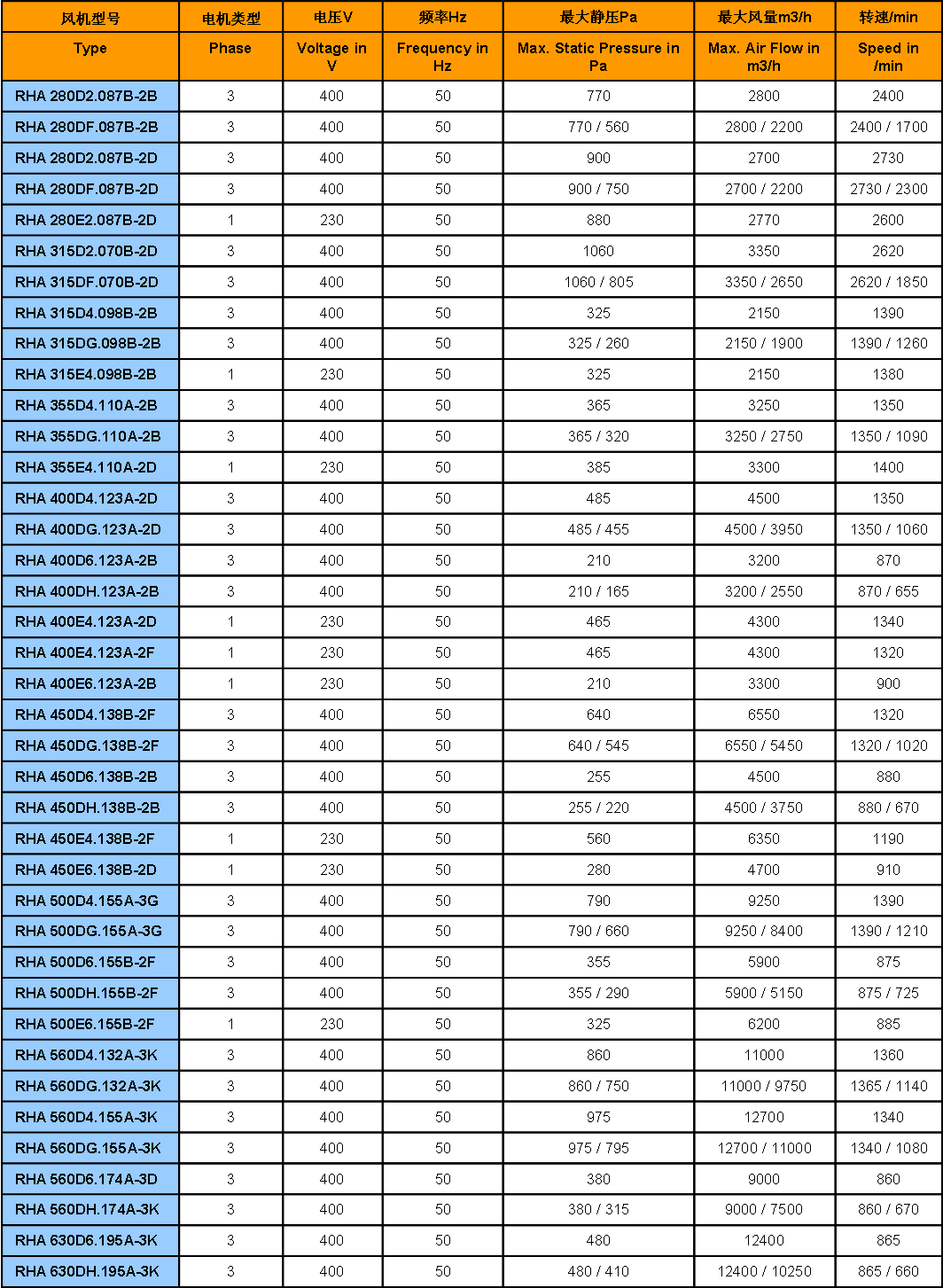

The performance data means some performance parameter in the rated working state.
We reserve the rights to make technical changes or modify the contents of this document without prior notice. SHIRO does not accept any responsibility whatsoever for potential errors or possible lack of information in this document.
For each SHIRO fan, we also provide you other optional parts that satisfy your diverse need.
Each SHIRO fan has the one and only product code, including the standard and non standard products.
